Pit Four-Post Parking: The Most efficient Way to Save Space

The Pit Four-Post Parking System is a cutting-edge subterranean parking solution created to optimize urban area utilization. In contrast to traditional parking systems, this technique allows one car to be placed on the surface while storing vehicles below ground level using a pit structure. For residential complexes, business buildings, and high-density parking locations where space is a big concern, this makes it perfect.

A pioneer in parking solutions, Kings Engineers Manufacturers focuses on designing and manufacturing premium pit four-post parking systems. These systems are safe, long-lasting, and very effective because to their cutting-edge technology, which makes them a great option for places with little ground surface.

Compared to conventional parking techniques, the pit four-post parking system offers a number of benefits. Space optimization is one of its main advantages since it permits subterranean vehicle storage without reducing the amount of surface area that is available. In urban areas where land is expensive and scarce, this technique is very advantageous.

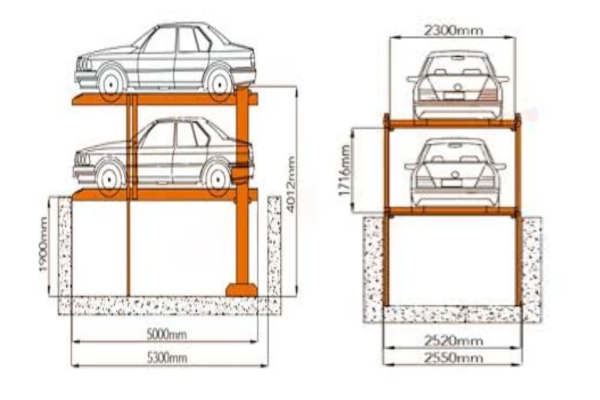

Multi Level Car Parking System - Kings Engineers

To ensure long-term endurance, Kings Engineers Manufacturers incorporates heavy-duty steel constructions and corrosion-resistant components into their system designs. Additionally, the technology shields the lower-parked car from potential harm by limiting exposure to external factors including sunlight, rain, and theft. Additionally, the system's automated operation offers a user-friendly experience, making it a dependable and practical parking solution.

Pit-Four Post G+1

The Pit Four-Post Parking System G+1 is a compact solution that uses an underground pit mechanism to fit two cars in a single parking space. One car can be stored below ground while another stays on the surface thanks to this technology, which consists of a four-post framework with an electric or hydraulic lifting platform. The G+1 layout essentially doubles parking capacity by adding one more parking deck.

To ensure seamless functioning and vehicle security, Kings Engineers Manufacturers makes sure that its G+1 pit four-post parking systems are constructed with high-strength steel, cutting-edge safety locks, and computerized controls. The system is a great option for properties wishing to optimize their parking efficiency without requiring further land expansion because it is made to be user-friendly, low-maintenance, and extremely robust.

Technical Specifications

Parameter	Value
Maximum-lifting Capacity	2500 kgs
Lifting Height	2100 mm
Over All Height	4200 mm
Platform Size	2300 x 5000 mm
Boundary	2700 x 5000 mm
Power Supply	AC 220V/440V 50Hz
Motor Power	2.2 kw
Control System	Push Button
Safety Locks	Automatic electro mechanical Lock
Warranty	1 Year

Operating Procedure

The working mechanism of the pit four-post parking system is based on a hydraulic or electric lifting platform. The structure consists of four sturdy posts supporting a lifting platform that moves vertically within a pit.

The platform can descend into the ground, allowing another vehicle to be parked on the surface. When the lower vehicle needs to be retrieved, the upper vehicle must first be removed, and then the system lifts the underground platform to ground level. Kings Engineers Manufacturers integrate high-quality hydraulic cylinders, safety locks, and automated controls to ensure smooth and secure operation.

This system is ideal for properties with limited parking availability since it effectively doubles the parking capacity without requiring additional land

Key Features

Space Saving Design

Doubles parking capacity without additional construction or land usage.

Strong Steel Structure

Manufactured using heavy-duty steel sections for superior load capacity.

Hydraulic Operation

Smooth and safe lifting mechanism with reliable hydraulic power pack.

Safety Mechanisms

Equipped with mechanical locks and limit switches for enhanced safety.

Applications

The pit four-post parking system's adaptability makes it appropriate for a variety of uses. By offering an extra parking space without requiring additional property, it enables homeowners to maximize driveway space in residential neighborhoods. This technique aids in expanding parking space while preserving an orderly layout in commercial buildings, shopping centers, and office complexes. By effectively storing and showcasing automobiles, this technology helps car businesses, auto repairs, and rental companies. In order to lessen traffic on the streets, municipal authorities and urban planners might also include similar systems into public parking lots. The system's depth, width, and lifting capacity may be customized, making it the perfect parking option for a variety of businesses and types of properties.

Pit-Four Post G+2

By adding an extra subterranean level, the Pit Four-Post Parking System G+2 increases parking efficiency by enabling three cars to be parked in a single slot—two inside the pit and one on the surface. High-density metropolitan areas, commercial buildings, and multi-unit dwellings with high parking requirements will benefit most from this system. This technology makes sure that retrieval is safe and easy even when there are several levels by using a deep pit mechanism.

To sustain the weight and movement of numerous vehicles, Kings Engineers Manufacturers incorporates strong structural reinforcements, sophisticated control panels, and heavy-duty hydraulic cylinders into its G+2 systems. The system's dependability and safety are improved by the incorporation of electromagnetic safety locks, emergency stop features, and sensors. Property owners can greatly expand parking capacity while keeping a small and well-organized parking layout by selecting the Pit Four-Post Parking System G+2.

Pit-Four Post Stacker
